Ultra-Bullet Digital Chess Clock Timer Circuit
A two-player sequential countdown timer designed with an NE555 astable clock generator, 74LS74 D-type flip-flop state register, 74LS192 synchronous BCD down counters, and 74LS47 7-segment decoders for ultra-bullet chess match controls.
System Architecture & Functional Logic
NE555 Astable Multivibrator Clock Source
Configured in astable mode (R1 = 1.0 kΩ, R2 = 71.5 kΩ via 68 kΩ fixed in series with a 10 kΩ potentiometer set to 3.5 kΩ, C1 = 10 µF) to generate a nominal 1.0 Hz clock signal (T ≈ 1.0 s, ~50.35% duty cycle), driving the single-digit 1-second cadence for ultra-bullet gameplay.
74LS74 Dual D-Type Flip-Flop State Register
Functions as a single-bit toggle state machine retaining active player state (Q=1 for Player 1 active, Q=0 for Player 2 active). An active-LOW mechanical pushbutton wired with a 10 kΩ pull-up resistor triggers the clock input, toggling player turns instantaneously upon release.
74LS08 Combinational Clock Gating
Two-input AND gates route the common 1.0 Hz clock pulses exclusively to the active player's counter (CLK1 = CLK · Q and CLK2 = CLK · Q'), preventing simultaneous countdown and ensuring paused time retention for the inactive opponent.
74LS192 Synchronous BCD Countdown & 74LS47 Display Decoder
Each player is assigned an independent 74LS192 down-counter counting from 9 (1001₂) to 0 (0000₂), paired with a 74LS47 decoder driving a common-anode 7-segment display with 270Ω current-limiting resistors per segment. Zero-detection logic triggers an active buzzer upon terminal expiration.
Technical Implementation Steps
1. Subsystem Verification in Falstad
Modularly verified individual functional sections in Falstad: simulated the 555 astable square wave, tested the D flip-flop state transition truth table, verified clock gating logic across turn handoffs, and inspected generic 4-bit up/down counting and terminal count alarm detection.
2. Integrated System Modeling in NI Multisim
Constructed the comprehensive digital circuit in Multisim using exact 74LS-series logic models (LM555CN, 74LS74N, 74LS08D, 74LS192N, 74LS47N) with interactive SPST switches, common-anode 7-segment LED displays, active 200 Hz buzzers, and multi-channel oscilloscope/multimeter probe instrumentation.
3. Electrical Constraint & Parametric Validation
Analyzed TTL fan-in/fan-out (each 74LS08 gate loads only 5% of rated 20-load capacity), verified noise margins (HIGH noise margin of 2.811V, LOW noise margin of 0.800V), confirmed timing margins (>99.999% over 40 ns total path delay), and calculated a total circuit power budget of ~1.613 W (322.6 mA peak at 5.0 V VCC).
Engineering Challenges & Diagnostics
Theoretical vs. Multisim 555 Oscillation Discrepancy
Theoretical calculation predicted f = 1.003 Hz (T = 0.997 s), while the integrated Multisim simulation yielded f = 0.7652 Hz (T = 1.3068 s, t_high = 795.46 ms, t_low = 511.36 ms). The ~23.7% deviation was attributed to internal LM555 comparator threshold and discharge transistor saturation modeling, which remained fully functional for sequential logic validation.
Falstad Generic Counter Downward Wraparound
In initial Falstad functional checks, the generic 4-bit counter wrapped from 0000₂ down to 1111₂ (displayed as 'F') because it lacked dedicated BCD 9-to-0 boundary limiting. The final Multisim circuit implemented the dedicated 74LS192 synchronous BCD counter to guarantee true decimal 9-to-0 countdown behavior.
Active-LOW Pushbutton Floating Input Prevention
Ensured clean turn toggling without spurious state jitter by wiring the player pushbutton with a 10 kΩ pull-up resistor to 5V VCC, ensuring the 74LS74 clock pin reliably sits at 4.8 V (well above the 2.0 V VIH(min) threshold) when open.
Results & Performance Verification
Turn-Alternating Clock Routing
Multi-channel probes verified that pressing the turn toggle successfully shifted the 0.765 Hz square wave between CLK1 and CLK2 while clamping the inactive line to a stable 0.000 V LOW.
TTL Voltage Compliance & Signal Integrity
Measured output HIGH voltages reached 4.811 V on the LM555 and 5.000 V on the 74LS74 Q/Q' outputs, exceeding TTL thresholds with comfortable noise margins (NMH = 2.811 V, NML = 0.800 V).
Terminal Count Buzzer Activation
Zero-detection logic successfully identified terminal count (0000₂) and triggered the active alarm output exclusively when time ran out on the active player.
Discussions & Design Tradeoffs
Sequential Logic in Time-Critical Timing Systems
Demonstrates how pure discrete 74LS-series logic gates and flip-flops create a robust, deterministic state machine for competitive sports timing without requiring microcontrollers or software overhead.
Simulation Tool Synergy: Falstad vs. Multisim
Highlights the engineering workflow of using rapid, high-level behavioral simulators (Falstad) for rapid logic prototyping, complemented by SPICE-accurate component-level suites (NI Multisim) for electrical validation.
Bill of Materials (BOM) & Cost Schedule
| Component / Hardware | Qty | Source / Spec | Cost |
|---|---|---|---|
| LM555CN / NE555 Timer IC | 1 pc | Electronics Supply | PHP 25.00 |
| 74LS74 Dual D-Type Flip-Flop IC | 1 pc | Electronics Supply | PHP 40.00 |
| 74LS08 Quad 2-Input AND Gate IC | 2 pcs | Electronics Supply | PHP 70.00 |
| 74LS192 Synchronous BCD Up/Down Counter | 2 pcs | Electronics Supply | PHP 110.00 |
| 74LS47 BCD to 7-Segment Decoder/Driver | 2 pcs | Electronics Supply | PHP 100.00 |
| Common-Anode 7-Segment Displays | 2 pcs | Electronics Supply | PHP 70.00 |
| Active Piezo Buzzer (5V, 200 Hz) | 2 pcs | Electronics Supply | PHP 60.00 |
| Resistors (270Ω, 1 kΩ, 68 kΩ, 10 kΩ) | 18 pcs | Electronics Supply | PHP 36.00 |
| Potentiometer (10 kΩ Trim) | 1 pc | Electronics Supply | PHP 20.00 |
| Capacitors (10 µF Electrolytic, 100 nF Ceramic) | 2 pcs | Electronics Supply | PHP 15.00 |
| SPST Pushbutton Switches | 2 pcs | Electronics Supply | PHP 30.00 |
Schematics, Blueprints & Layouts
Fig 1.1 — Complete Multisim Circuit Schematic
Full schematic diagram modeled in NI Multisim 14 showing NE555 timer, 74LS74 flip-flop state register, 74LS08 gating logic, dual 74LS192 counters, and 74LS47 display drivers.

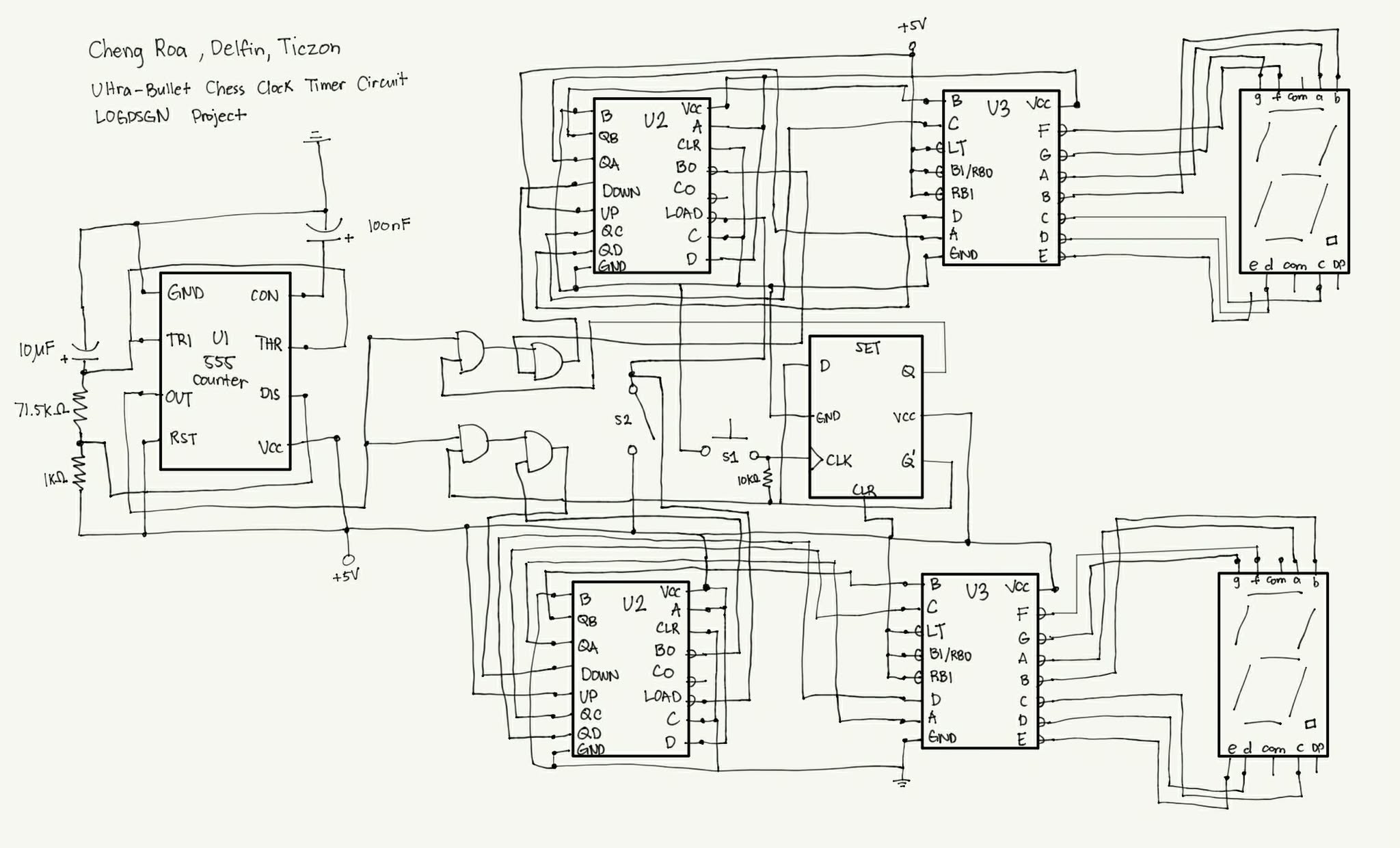

Fig 1.2 — Hand-Drawn Block Diagram & Schematic
Original hand-drawn circuit blueprint and functional block diagram outlining signal flow and pin interconnects for the digital chess clock.

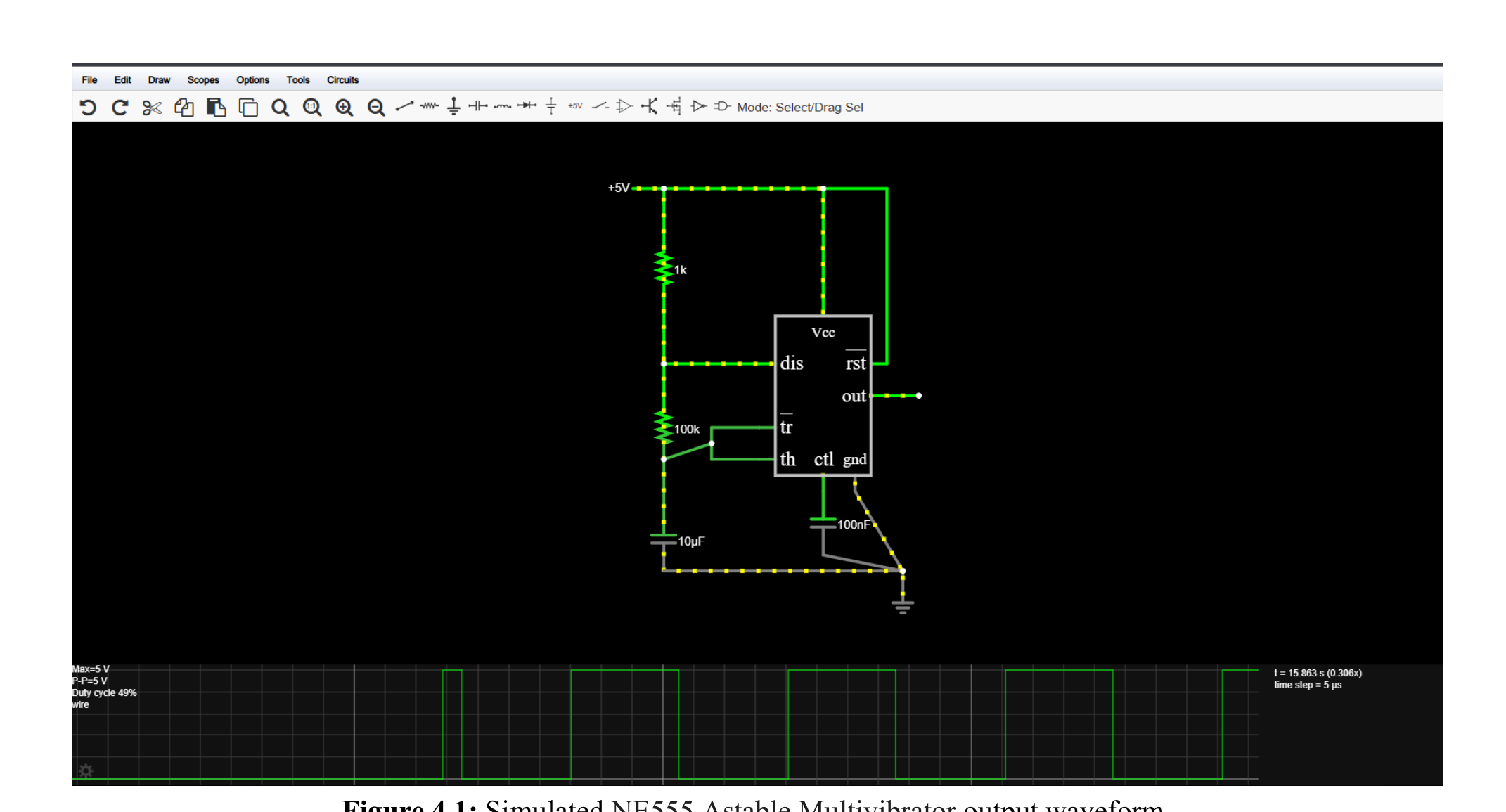

Fig 1.3 — NE555 Astable Multivibrator Falstad Simulation
Falstad simulation verifying the 555 astable square-wave output frequency, charge/discharge timing, and steady periodic clock generation.

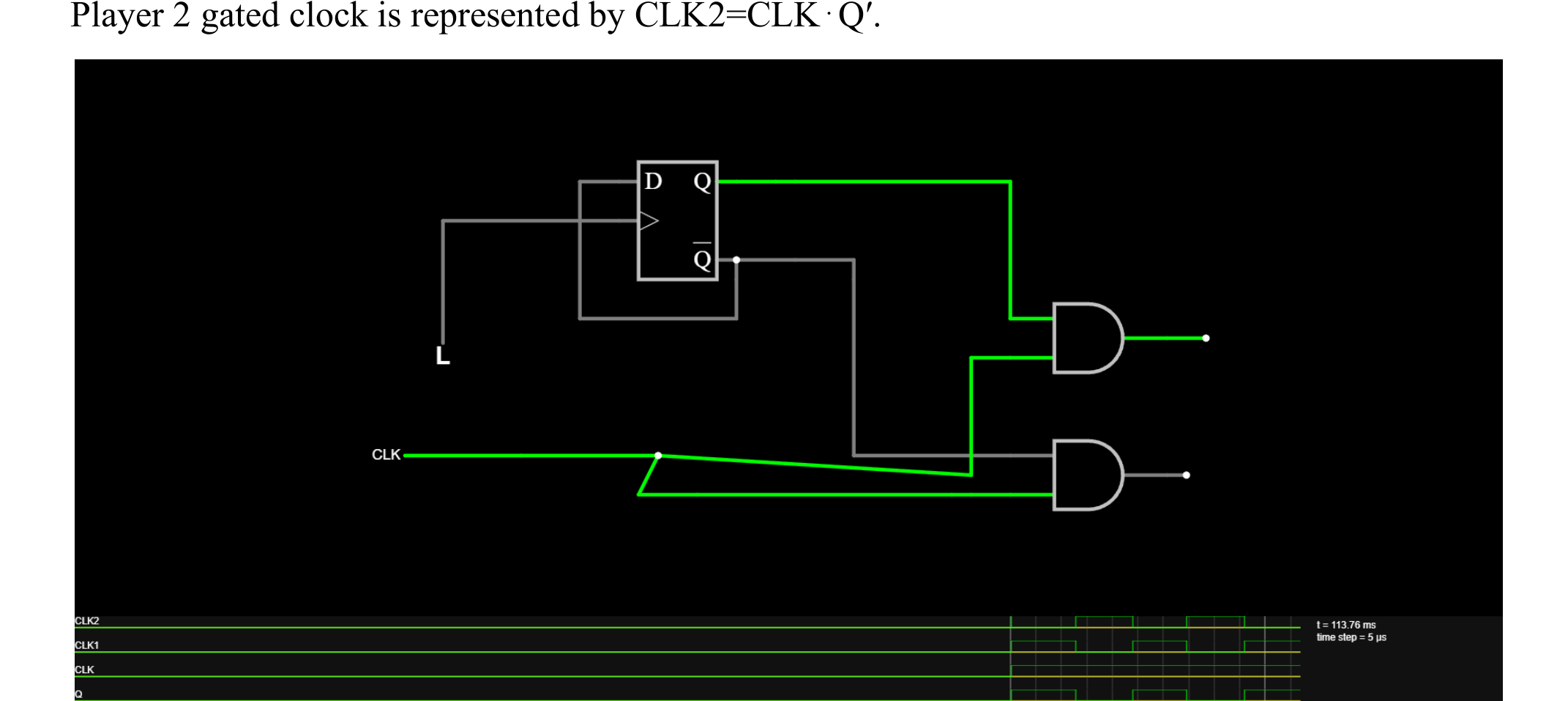

Fig 1.4 — Clock Routing & Gating Logic Simulation
Falstad simulation of the 74LS74 D flip-flop combined with 74LS08 AND gates, demonstrating alternating gated clock delivery (CLK1/CLK2).

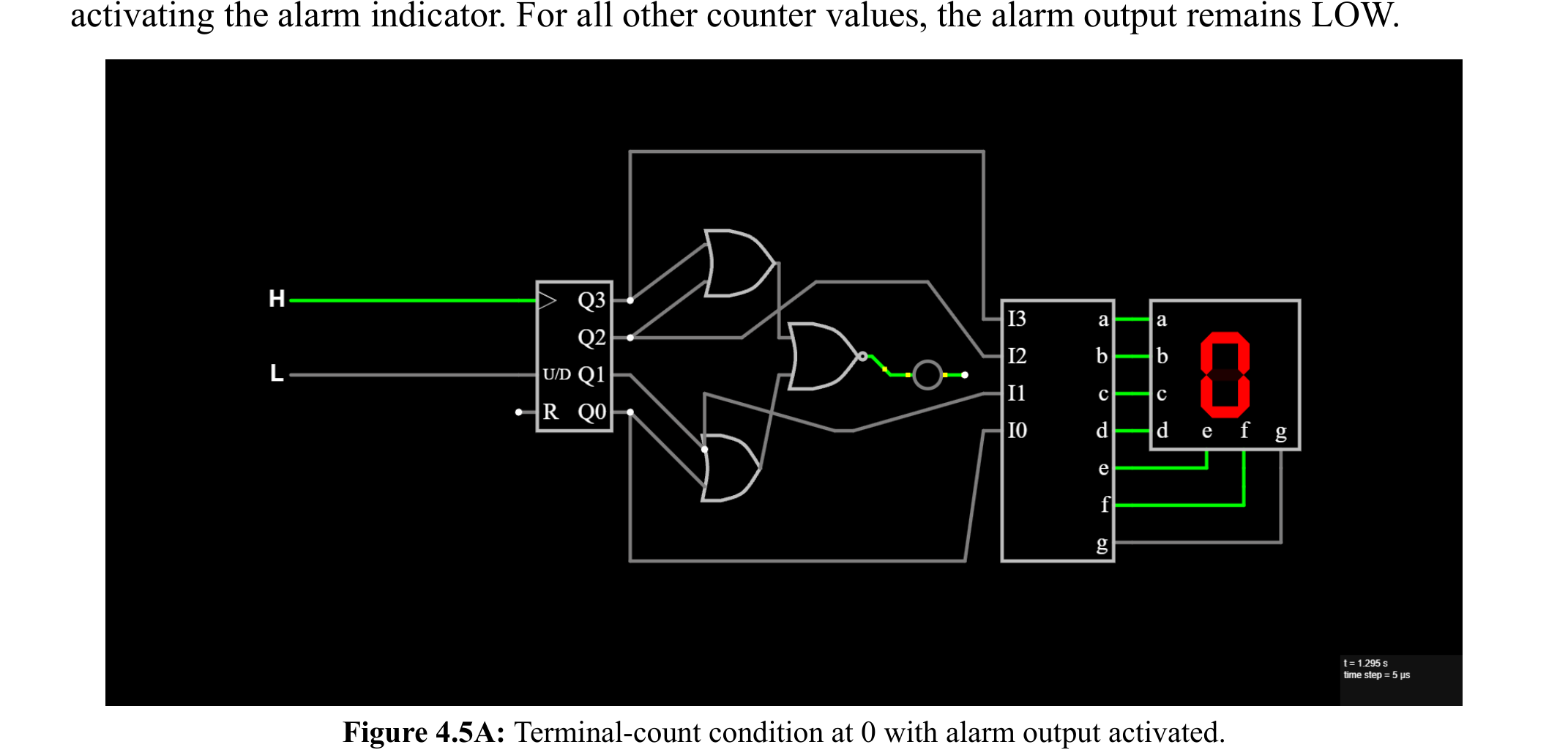

Fig 1.5 — Terminal Count & Zero-Detection Logic
Falstad simulation verifying NOR/OR logic zero-detection triggering the active alarm indicator exclusively when count reaches zero (0000₂).

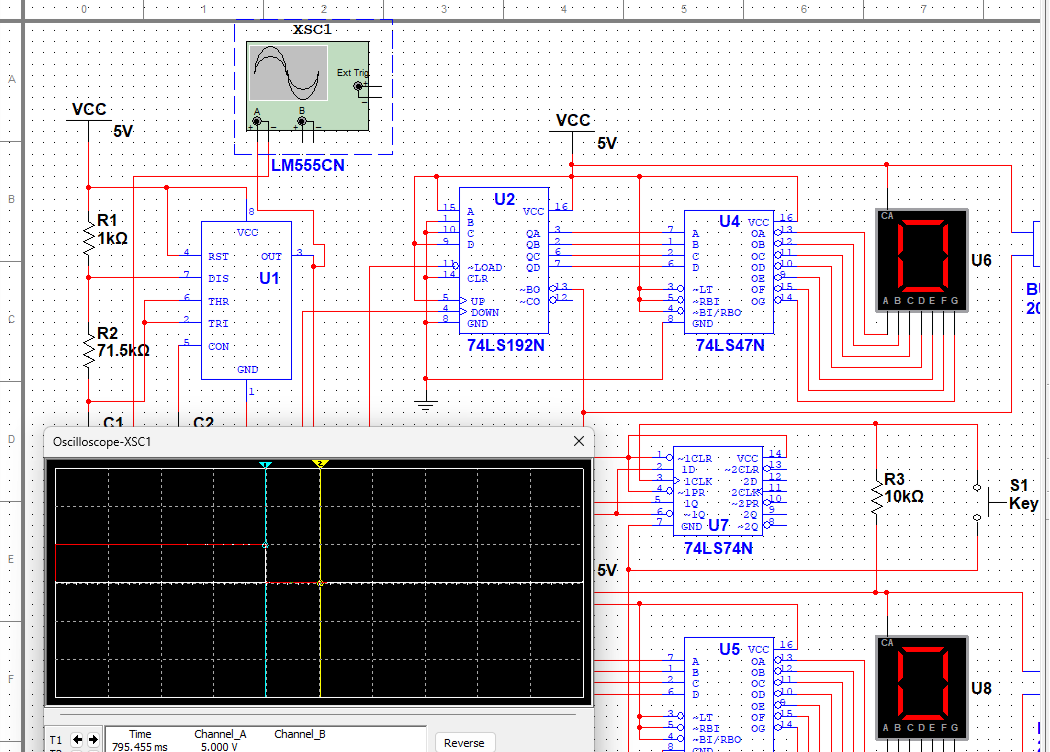

Fig 1.6 — Oscilloscope HIGH Time Measurement
Multisim oscilloscope cursor measurement capturing the 795.455 ms HIGH output state duration of the LM555CN clock.

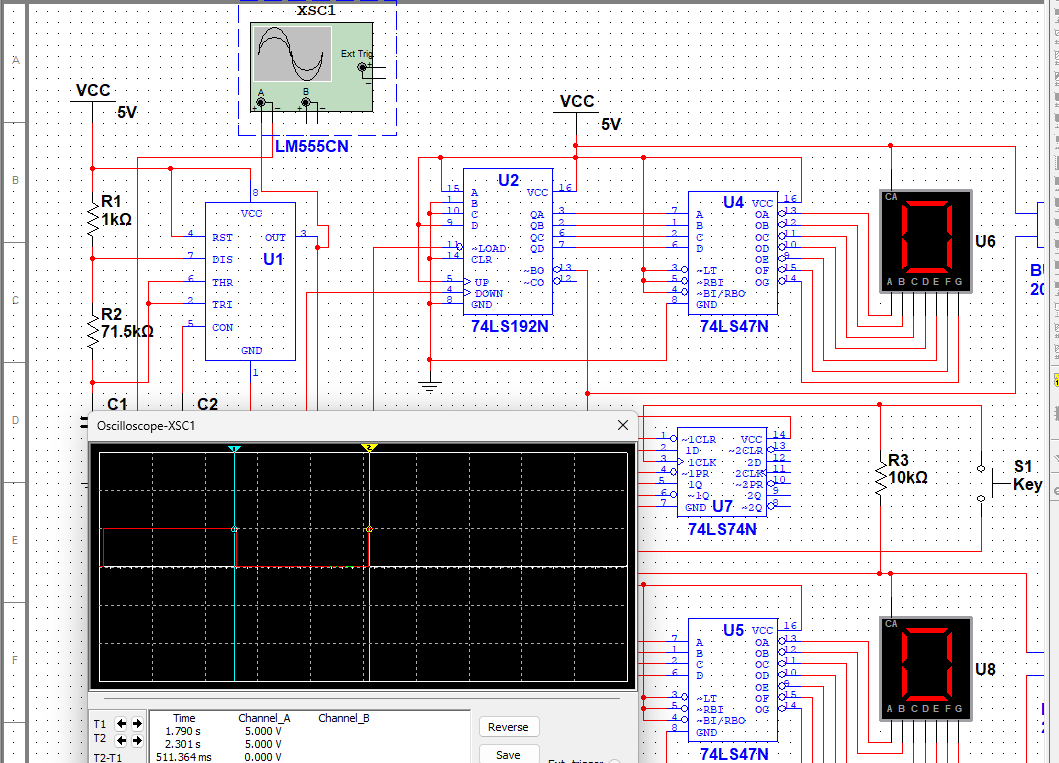

Fig 1.7 — Oscilloscope LOW Time Measurement
Multisim oscilloscope cursor measurement capturing the 511.364 ms LOW output state duration of the LM555CN clock.

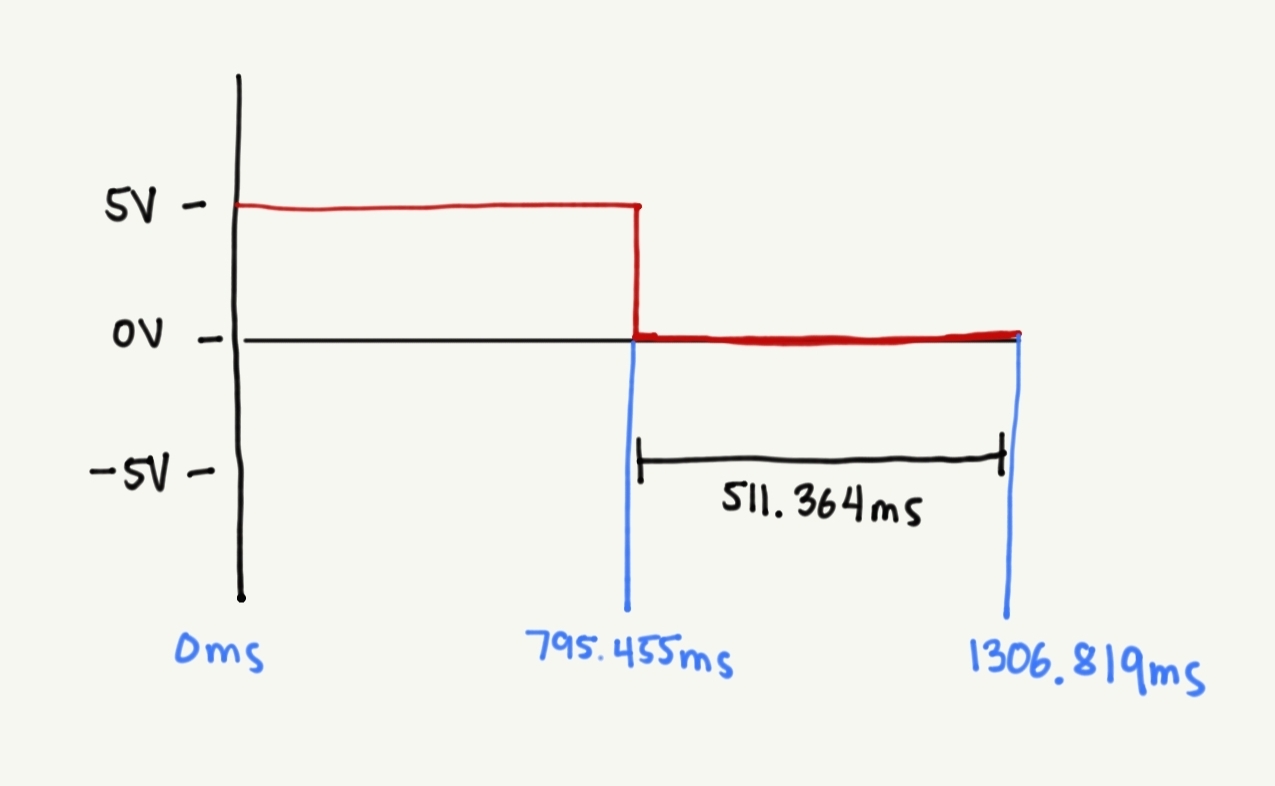

Fig 1.8 — Measured Clock Waveform & Period Graph
Graphical diagram illustrating measured HIGH (795.455 ms) and LOW (511.364 ms) timing intervals and total 1.307s period of the 555 clock.

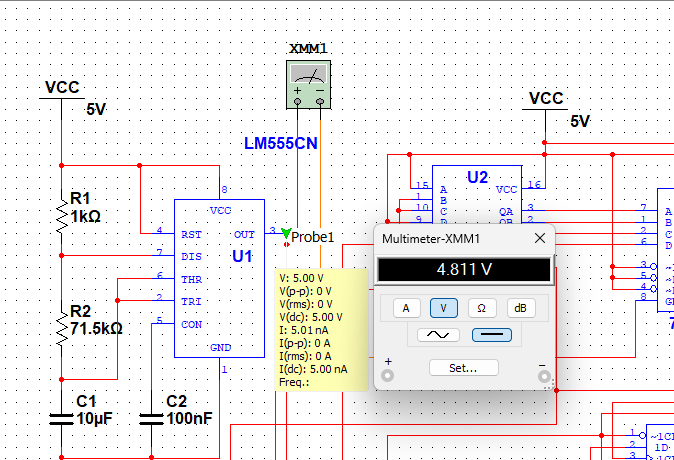

Fig 1.9 — Multisim Digital Multimeter Probe – 555 HIGH State
DMM probe reading showing 4.811 V logic HIGH output voltage from pin 3 of the LM555CN timer.

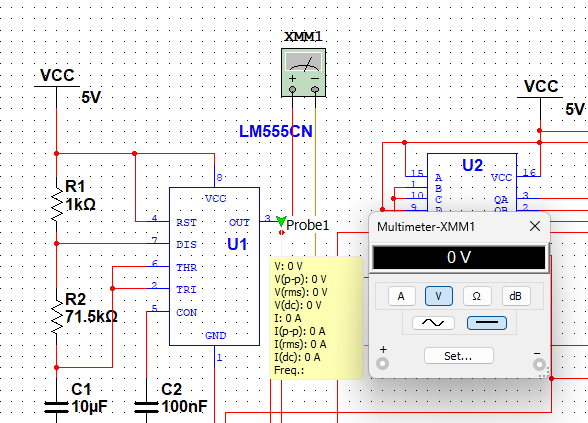

Fig 1.10 — Multisim Digital Multimeter Probe – 555 LOW State
DMM probe reading showing 0.000 V logic LOW output voltage from pin 3 of the LM555CN timer.

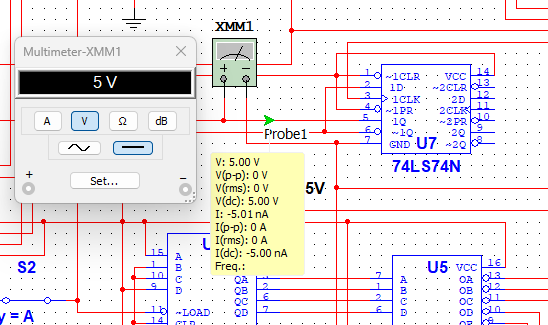

Fig 1.11 — Multisim DMM Probe – 74LS74 Q Output (Pin 5)
DMM probe measuring 5.000 V at pin 5 (Q) of the 74LS74 state register during Player 1 active turn.
Fig 1.12 — Multisim DMM Probe – 74LS74 Q' Output (Pin 6)
DMM probe measuring 5.000 V at pin 6 (Q') of the 74LS74 state register during Player 2 active turn.
