Single-Digit Random Number Circuit Design & PCB Implementation
A digital sequential and combinational logic circuit utilizing an astable 555 timer, 74LS90 decade counter, and 74LS47 decoder to simulate an unpredictable single-digit dice roller on a custom PCB.
System Architecture & Functional Logic
Astable Clock & Gated Trigger Architecture
An NE555P timer in astable mode produces continuous ~19.24 Hz clock pulses (51.98ms period). A momentary pushbutton with a 10kΩ pulldown resistor gates the clock signal into pin 14 (CP0) of the 74LS90, maintaining a stable LOW level when released to prevent floating logic triggers.
Decade Counting & BCD-to-7-Segment Display
The 74LS90 increments through 10 BCD states (0000–1001) and automatically resets at 10. The 4-bit output directly drives a 74LS47 active-LOW decoder linked to a common-anode 7-segment display, alongside 4 binary monitoring LEDs and a pulsed piezo buzzer for audiovisual cues.
Technical Implementation Steps
1. 555 Timer Frequency Configuration
Configured with R1 = 10kΩ, R2 = 10kΩ, and C1 = 2.5µF (charging t1 = 34.65ms, discharging t2 = 17.33ms, 66.7% duty cycle) to cycle 19 times per second, outmatching human reaction time (~200ms) to ensure randomness.
2. Staged Breadboard Verification
Tested modularly: first inspected slow clock pulses with a 470µF capacitor, verified the 74LS90 0–9 BCD sequence with push-pulse inputs, and confirmed 74LS47 segment mapping before stepping down to high-speed oscillation.
3. KiCad Schematic & Single-Layer PCB Routing
Designed schematic and routed single-layer PCB tracks in KiCad with dedicated 5V VCC power rails, star ground plane, and component headers for the SPST button, buzzer, and 7-segment LED.
Engineering Challenges & Diagnostics
Breadboard Even-Number Bias
Solderless breadboard prototype testing showed an unexpected bias toward even numbers due to loose contact resistance and bouncing on clock lines. Transferring and soldering components onto the copper PCB eliminated contact noise, restoring uniform distribution.
Floating Clock Line Stabilization
Addressed input noise susceptibility by placing a 10kΩ pulldown resistor at the button-to-74LS90 junction, ensuring pin 14 stays firmly grounded when the button is open.
Results & Performance Verification
19.24 Hz Oscillation Speed
Achieved ~19 counts per second, executing ~4 full counting cycles during human button press duration, making timing prediction impossible.
Accurate 0–9 Decimal Decoding
Confirmed 10-state truth table mapping with active-LOW 74LS47 driving segments without blanking or invalid digit outputs.
Hardware PCB Reliability
The fabricated PCB board successfully consolidated the 3 IC stages into a compact, portable 5V standalone random number generator unit.
Discussions & Design Tradeoffs
Reaction Time vs. Hardware Frequency Mismatch
Demonstrates how combining high-frequency digital clocking with human tactile latency achieves effective pseudorandomness without microcontrollers or firmware.
Physical Construction Integrity
Highlights the necessity of solid PCB solder joints over temporary breadboard jumpers when designing noise-sensitive, edge-triggered digital logic systems.
Bill of Materials (BOM) & Cost Schedule
| Component / Hardware | Qty | Source / Spec | Cost |
|---|---|---|---|
| 74LS90 Decade Counter IC | 1 pc | Electronics Supply | PHP 45.00 |
| 74LS47 BCD to 7-Segment Decoder | 1 pc | Electronics Supply | PHP 50.00 |
| NE555P Precision Timer IC | 1 pc | Electronics Supply | PHP 20.00 |
| Common Anode 7-Segment Display | 1 pc | Electronics Supply | PHP 35.00 |
| Resistors (300Ω ¼W, 10kΩ ¼W) | 7 pcs | Electronics Supply | PHP 14.00 |
| Electrolytic Capacitors (2.5µF) | 2 pcs | Electronics Supply | PHP 10.00 |
| Piezo Buzzer & 5mm LEDs | 5 pcs | Electronics Supply | PHP 30.00 |
| SPST Momentary Pushbutton | 1 pc | Electronics Supply | PHP 15.00 |
| Single-Sided Copper Clad PCB | 1 pc | Fabrication | PHP 60.00 |
Schematics, Blueprints & Layouts

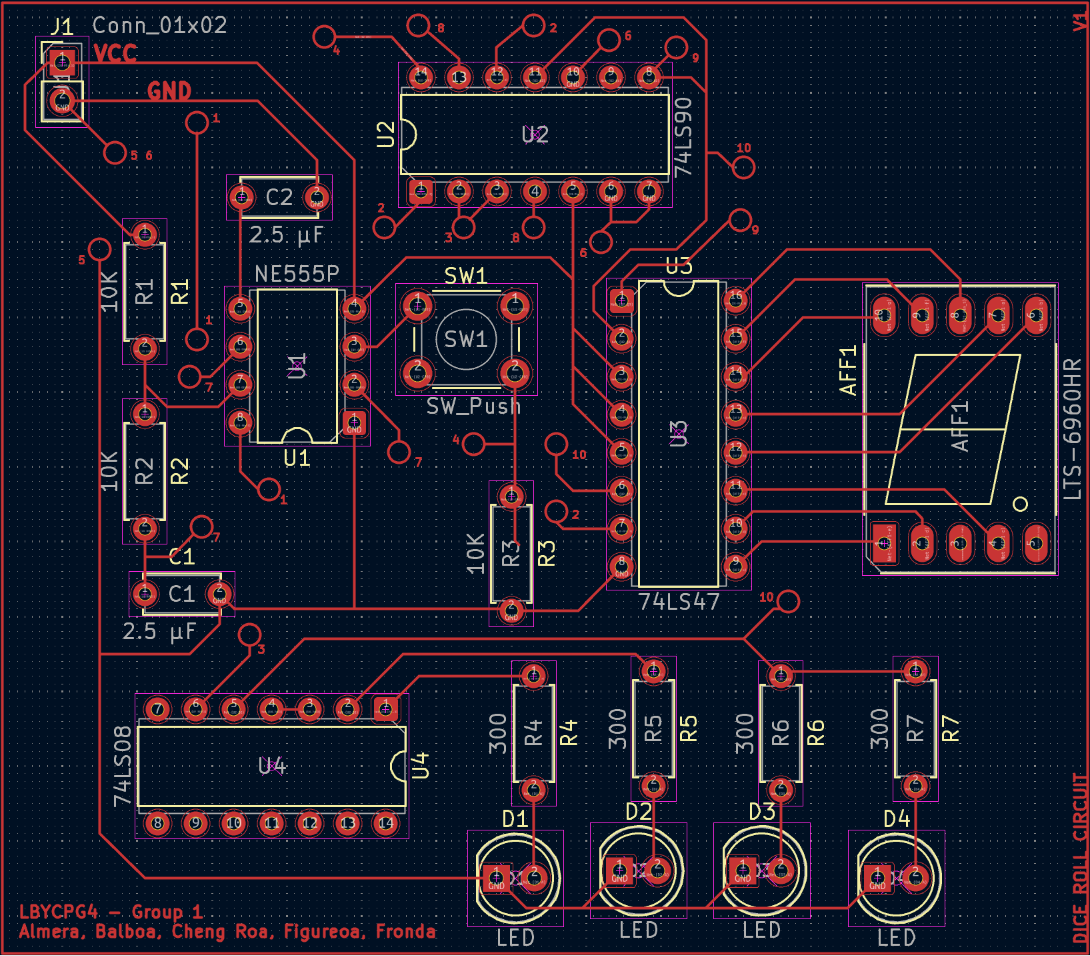

Fig 1.1 — KiCAD PCB Layout
PCB layout designed in KiCAD for the 74LS90, 74LS47, and NE555P ICs with corresponding power and ground planes.
